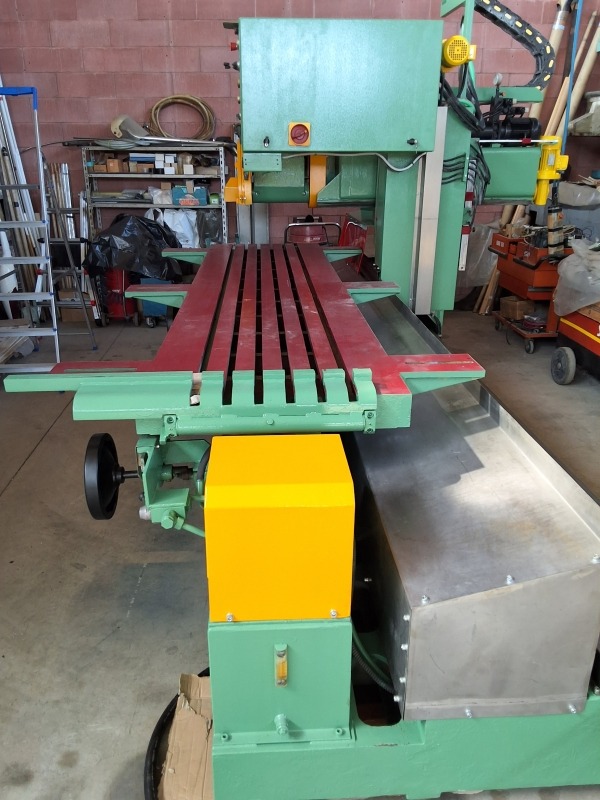

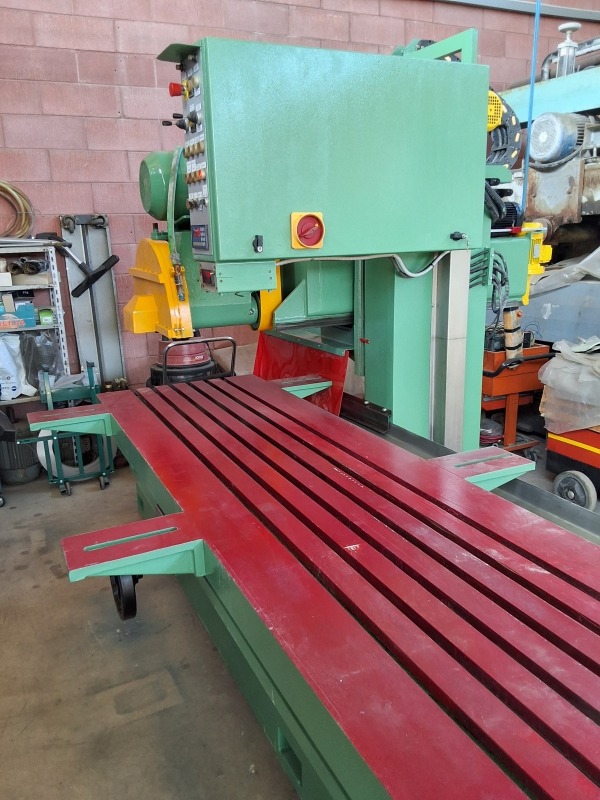

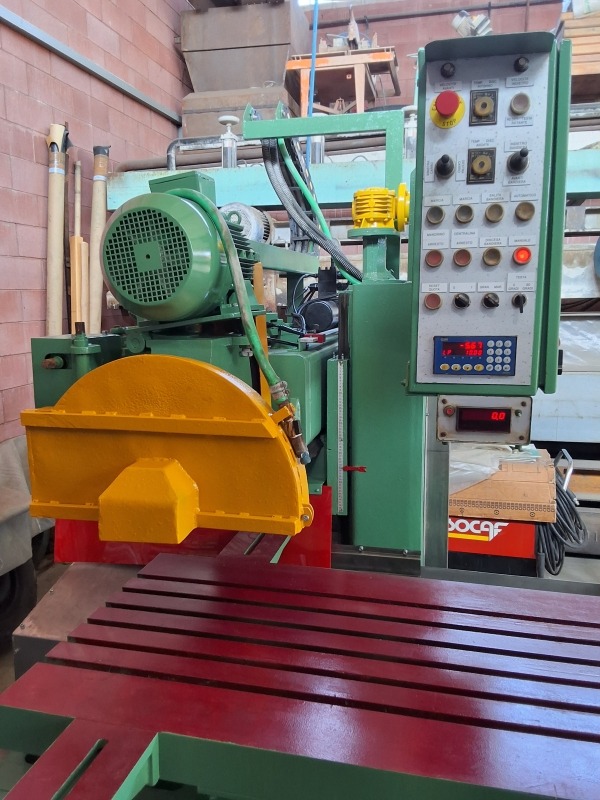

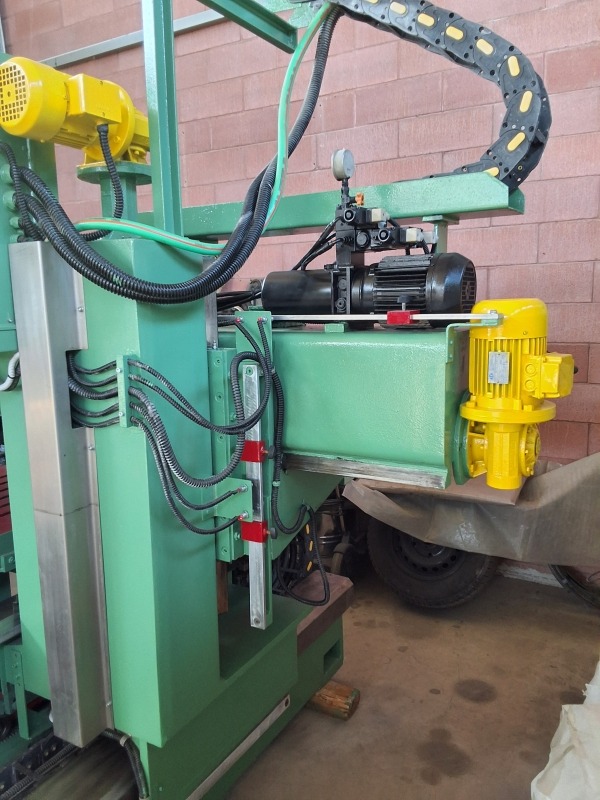

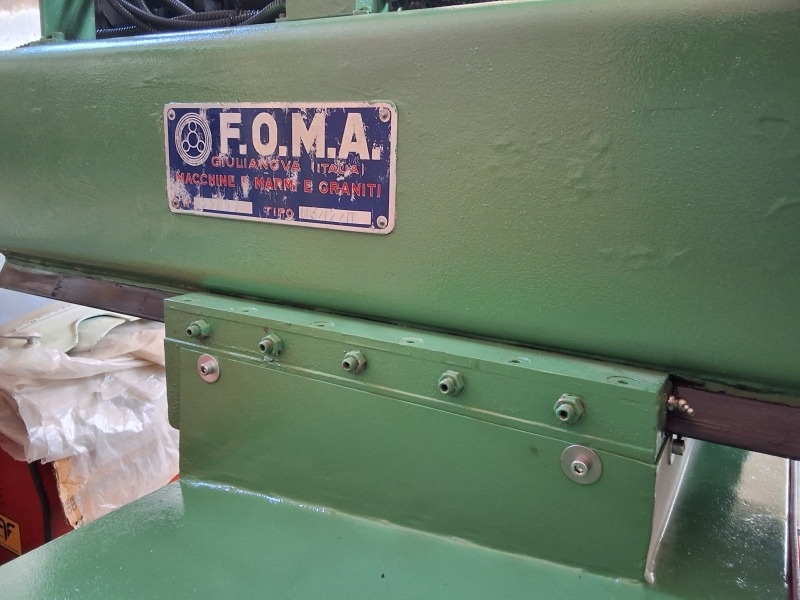

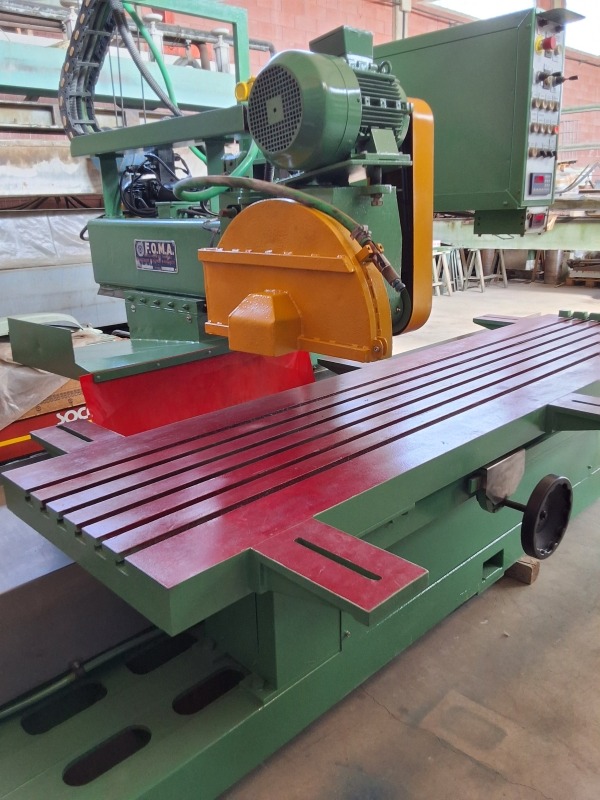

Foma type UP3 Universal Monoblock Milling Machine

Foma type UP3 Universal Monoblock Milling Machine is a versatile machine, and compared to traditional milling machines, it doesn't have a mobile bench and the advantage of taking up half the space of traditional ones with a sliding bench.

The upright group slides on a frame completely made of cast iron, with guides in an oil bath.

The spindle rotates 90° and brakes automatically. In this way the machine works both longitudinally and transversally, in both working directions.

It can perform cuts both manually and automatically or semi-automatically both in single-pass marble mode, or in granite mode with multiple passes.

In addition, the head can be tilted from 0° to 45°, it performs automatic cuts on thickness and width.

Displayed with display on the cut in width and on the length of the cut.

Machine completely overhauled and painted

• Spindle motor KW 7,5-11
• Normal disk diameter MM 500
• Longitudinal translation of the oleodynamic center KW 1,5
• Motor reducer transversal translation KW 0,37
• Longitudinal run (with 400mm disk) MM 3000
• Trasversal run with inverter(with 400mm disk) MM 800
• Vertical run (with 400mm disk) MM 395
• Total weight (aprox) KG 3500
